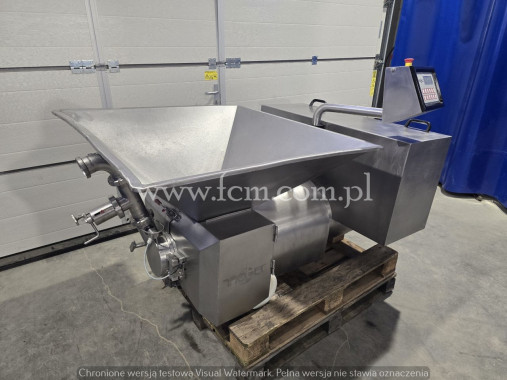

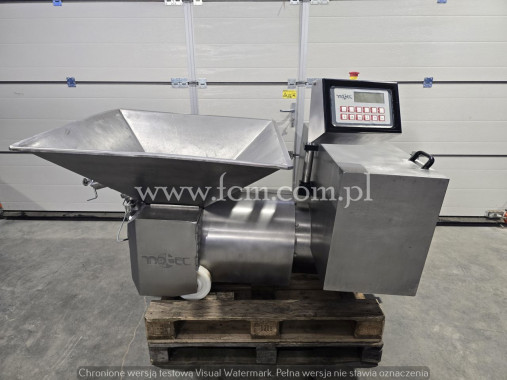

Mobile micro cutter Inotec I175CD-75D

Handtmann vacuum filler

• Type: VF 50
• Capacity: up to 2600 kg/h
• Hopper capacity: 50 liters
• Filling pressure: up to 55 bar
• Portioning speed up to 420 portions/min with a tolerance of 10%
• Portion range: 5-100,000 gr.
• Power: 4 kW
• Electric power supply: 400V 50HZ 3N
• Sample machine performance table for portioning and wrapping:

            25g - 420 portions/min
            50g - 350 portions/min
            100g - 250 portions/min
            200g - 160 portions/min

• Net weight: 660 kg
• External dimensions: 900 x 580 x 1720 mm
• Made of stainless steel
• Quantity in stock: 1
• Condition: Used

Clipper Technopack

• Type: KDCV 70
• Power: 0.1 kW
• Dimensions: 1250 x 600 x 1850 mm
• Weight: 118 kg
• For all covers: plastic, fibrous, collagen and natural
• Mobile machine on a trolley
• In set funnel 22 mm
• Quantity in stock: 1
• Condition: Used

Compressor Bitzer

• Type: 4J-22.2Y-40P
• Volume: 63.5 m3/h
• Cooling capacity for R404A: 42.7 kW at -5°C/40°C, 35 kW at -10°C/40°C, 17.9 kW at -25°C/40°C
• Quantity in stock: 3
• Reference number: S 226
• Condition: Used

Used Complet Bitzer Co2 Cooling installation for processing rooms and or corridors.

This unit, in excellent condition, is equipped with the following main components:

1. Compressors Rack Teko ROXSTA 2.O, with 4x Co2 Compressors Bitzer 4DTC-25K-40P, and 1x Co2 Compressor 4FTE-20K-40S, and original control cabinet

2. Evaporators - 5 pieces Guntner S-DHN 051C/24 dual discharge, full stainless steel ( Housing and block made of stainless steel )

3. Evaporators - 3 pieces Guntner S-CXDHN 046C/37 dual discharge, full stainless steel ( Housing and block made of stainless steel )

4. Evaporators - 1 pieces Guntner S-CXDHN 046C/37 dual discharge

5.  Evaporators - 4 pieces Guntner GACC CX 040.1/3-70.E-1845718M, standard cubic evaporators

6. Gascooler Guntner GVD080.4C/2x3-EK.E, V-shape
